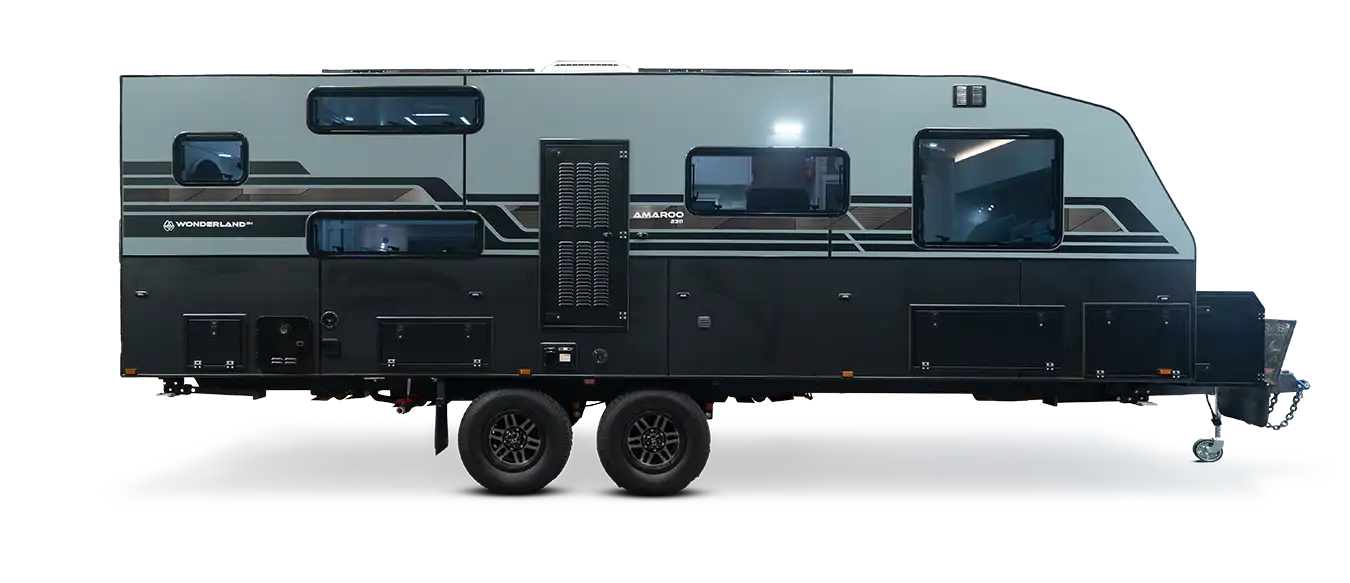

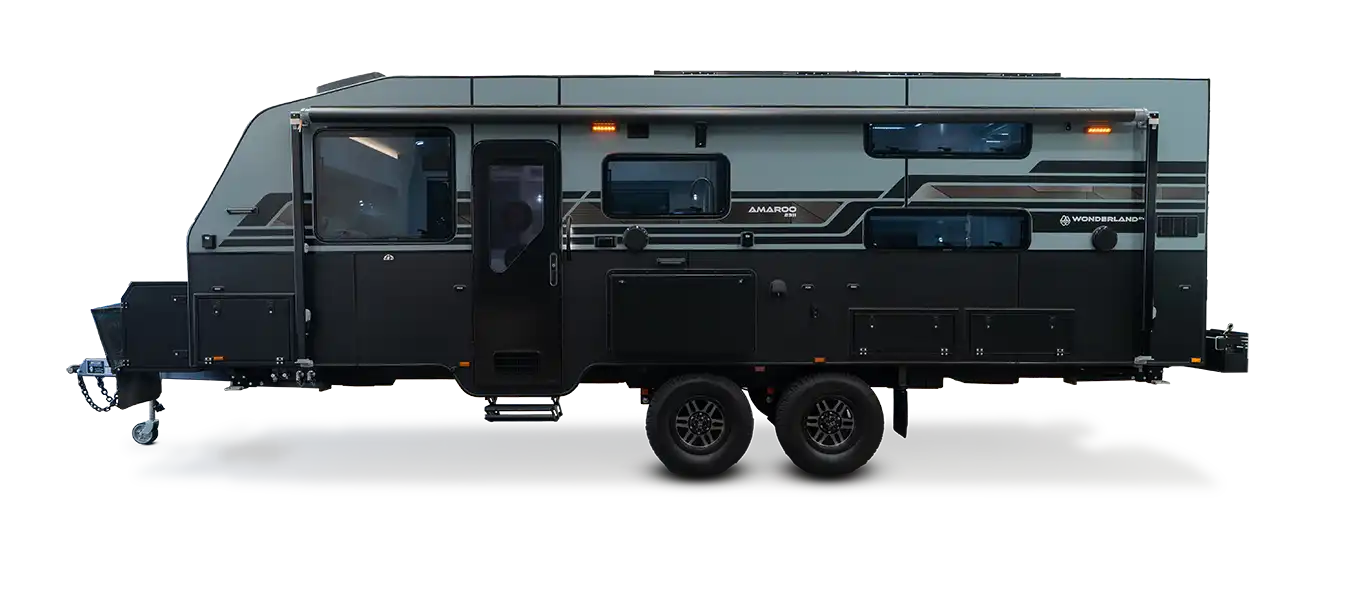

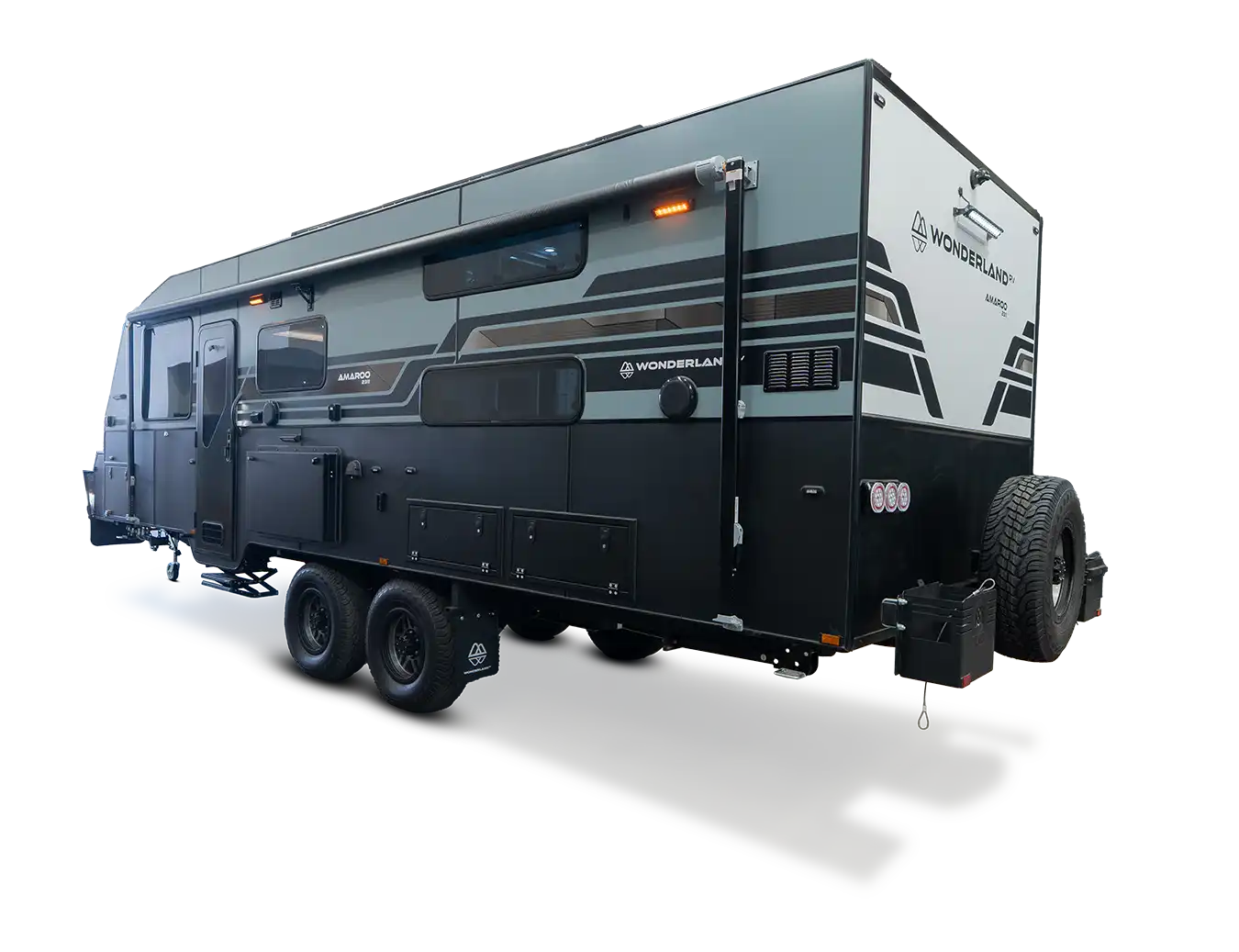

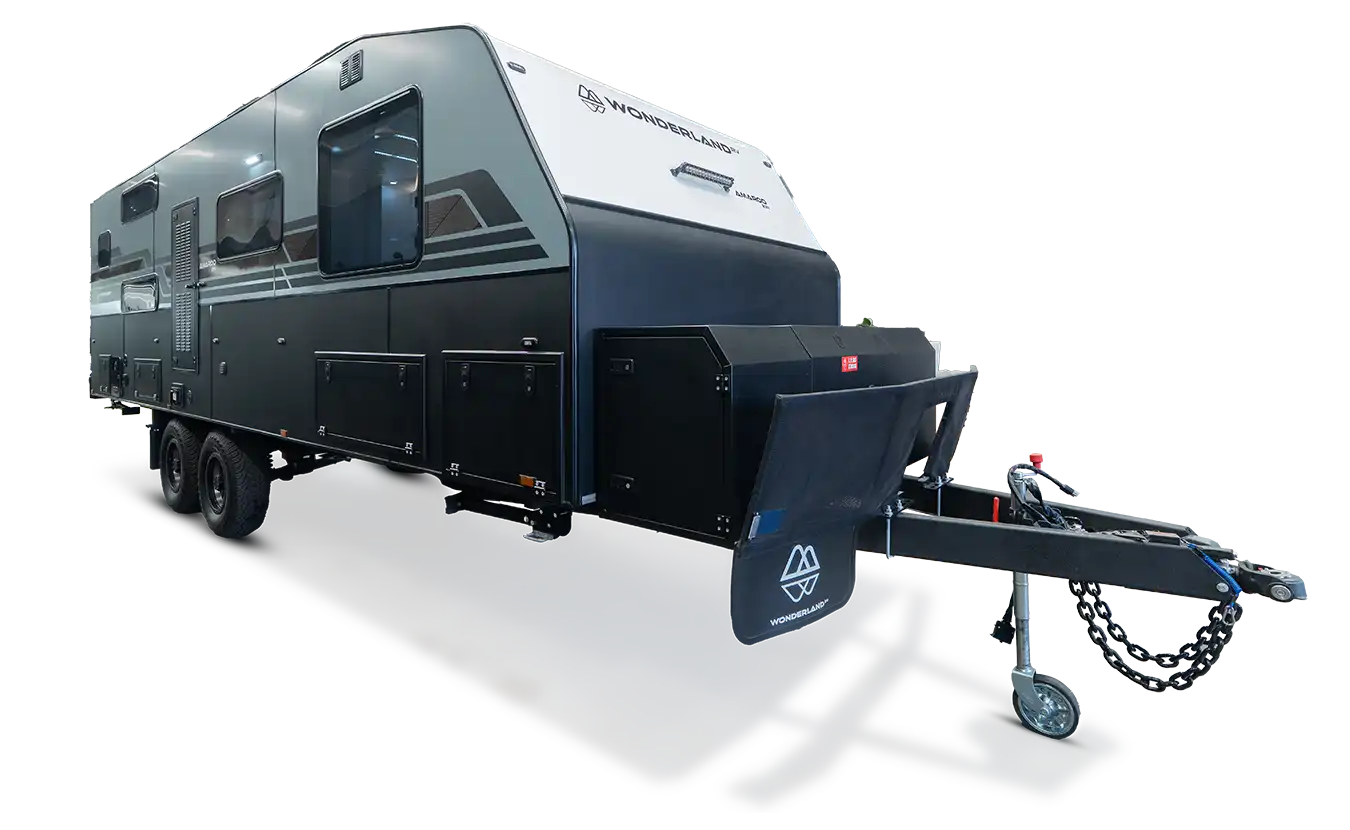

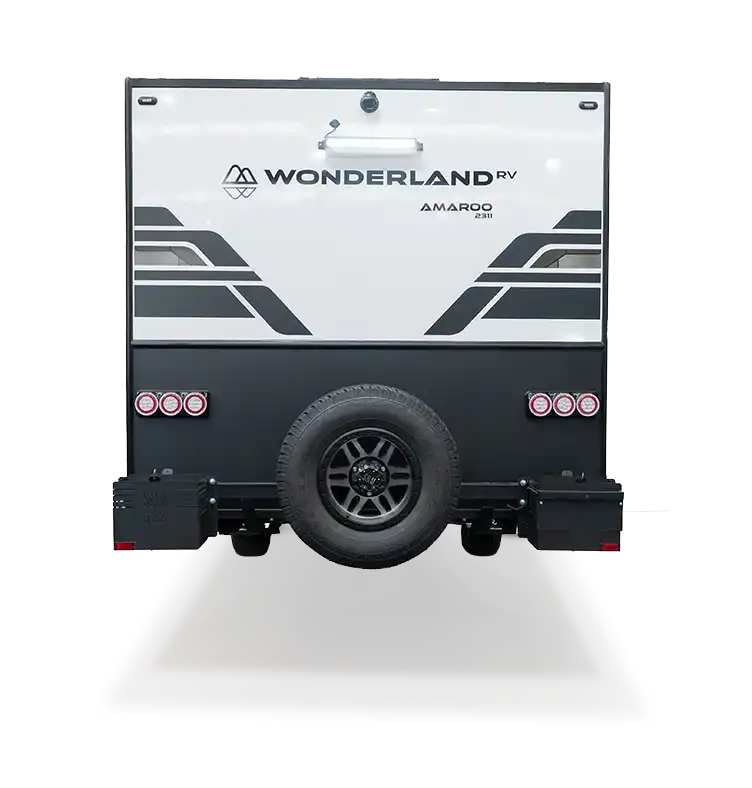

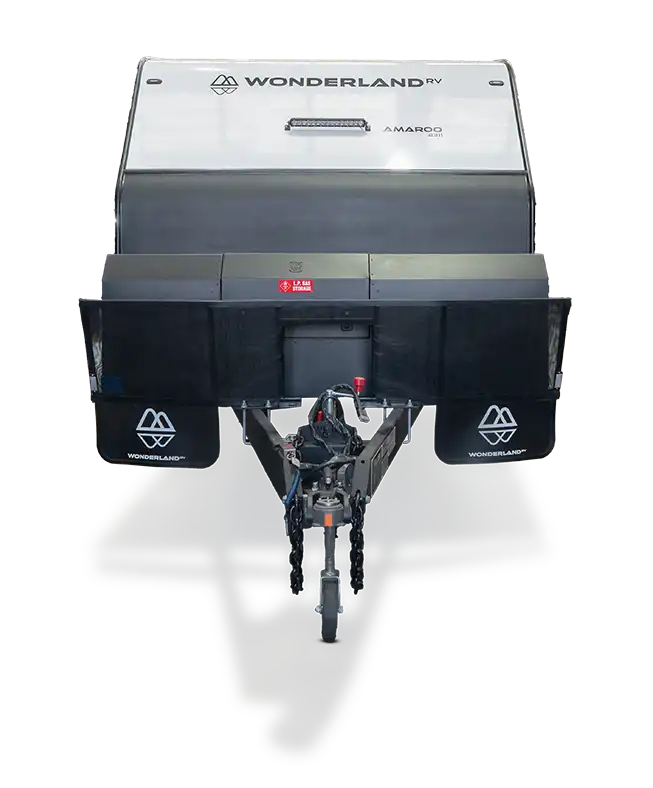

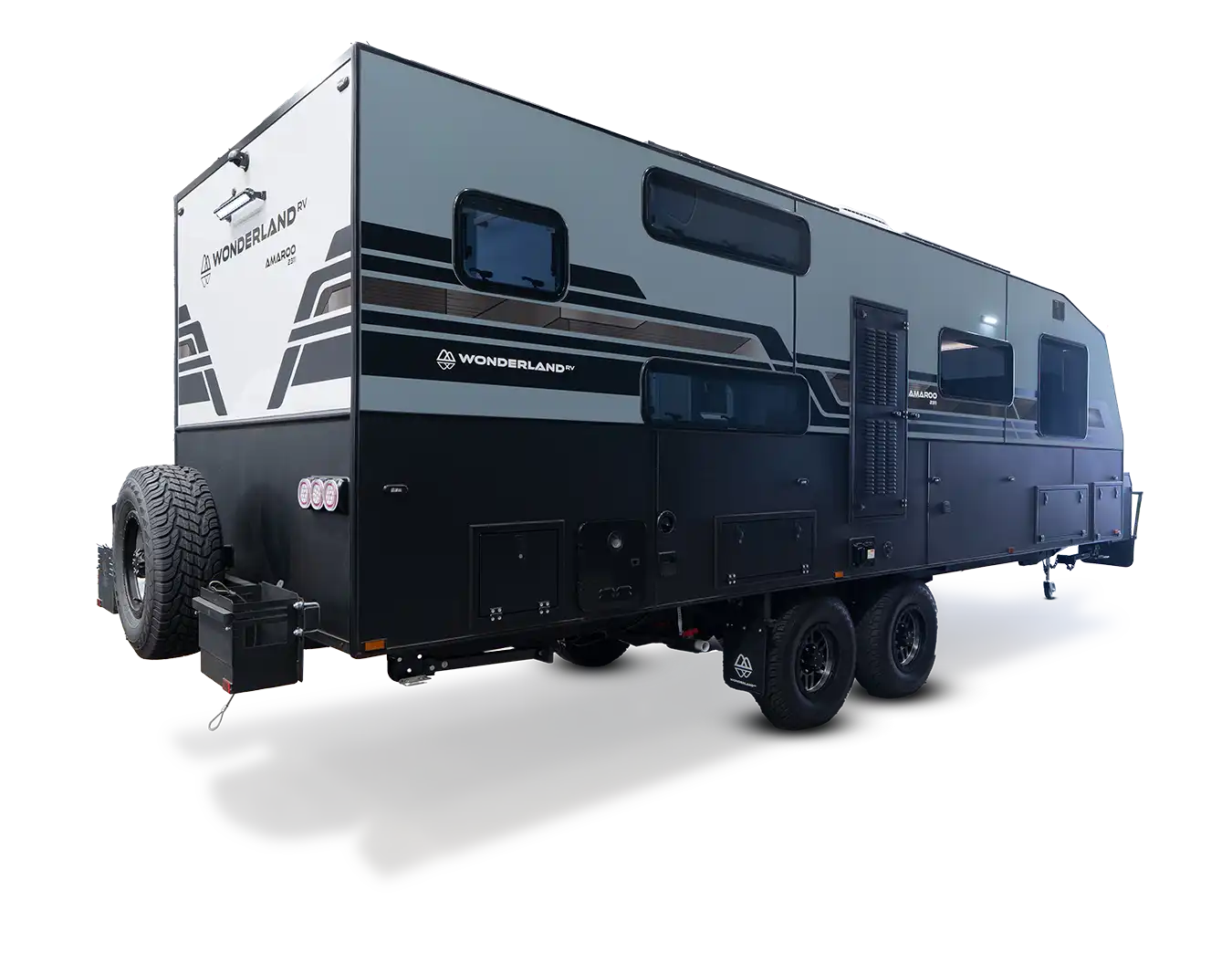

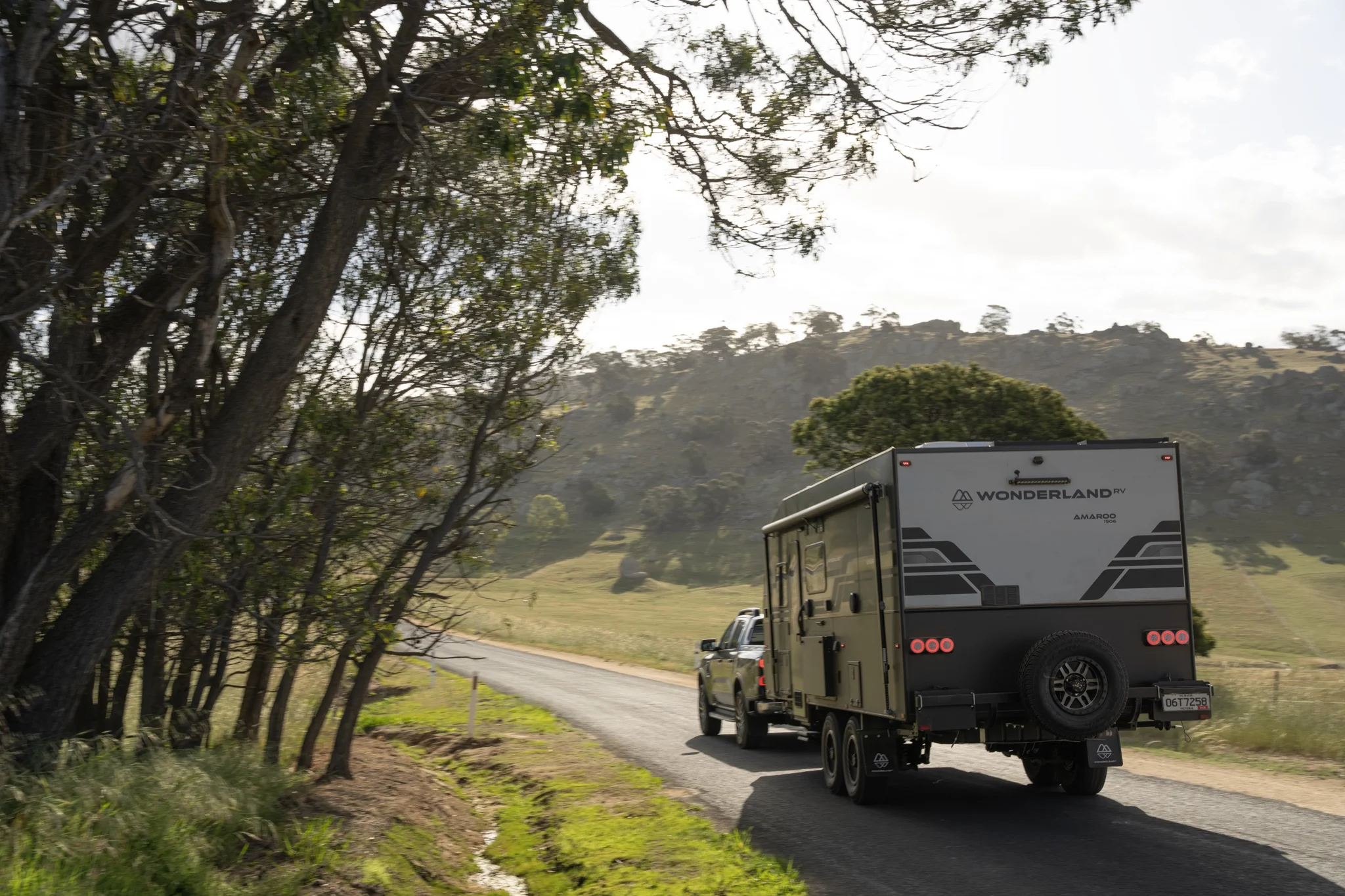

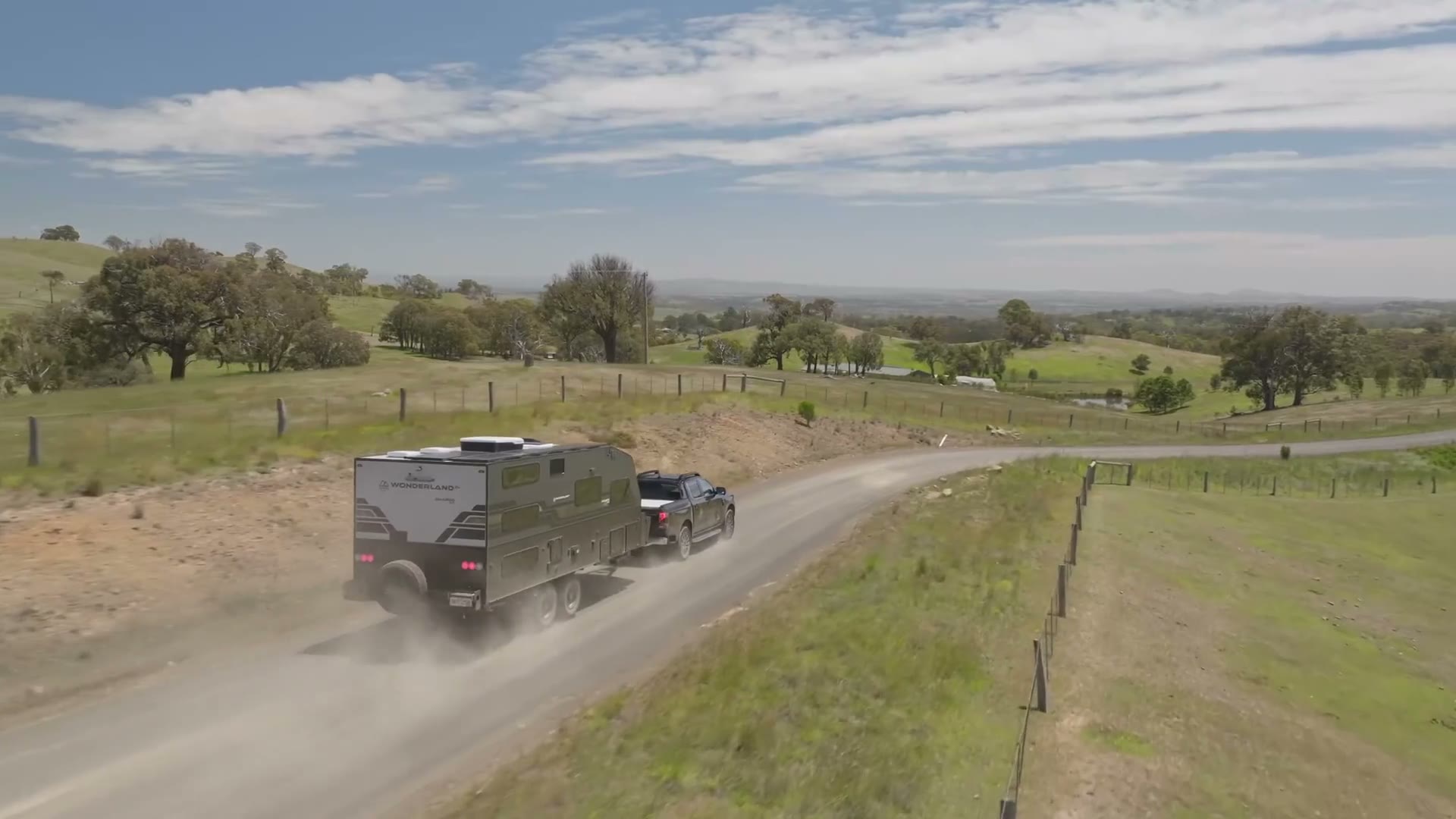

Amaroo is tough enough to head off the beaten track with all the luxuries you’d expect in a Wonderland RV. Australian-made and built to last, Amaroo is a great all-rounder with incredible standard inclusions, impeccable finishes and the famous Wonderland RV strength, durability and comfort.
Electrical
Redarc Alpha 50 off-grid system, 2000W inverter, 600W solar & 300Ah lithium
TV
24” Smart TV
Wheels
16″ Wheels & All-Terrain tyres
Brakes
12” drum brakes
Suspension
Select from premium
suspension systems:
Fresh Water
200L fresh water
STANDARD CHASSIS
| A-Frame, riser and chassis | 6″ x 1950mm A-Frame & double 4+4″ chassis & wheelbox riser (flat floor) |
| Axle | Tandem Axle (except for 1709 & 1806F – Single Axle) |
| Suspension | Choose from:
|
| Brakes | 12″ drum brakes |
| Bumper | 4 arm with taillights |
| Chassis finish | Painted black |
| Hitch Type | DO35 by Cruisemaster recessed |
| Jockey wheel | AL-KO 8″ wide large clamp 629915 |
| Stabilising legs | Drop down corner stabilisers |
| Step | Double aluminium step |
| Water tank/jerry can holder | 2 x rear bar water tank/jerry can holders |
| Wheels and tyres |
|
STANDARD EXTERIOR
Accessories
| Awning | Dometic manual 8700 grey with black arms |
| BBQ bayonet and tap | 1 x gas bayonet plus 1 x cold tap at tunnel boot |
| Gas bottles | 2 x 4kg powdercoated gas cylinders |
| Outdoor Pantry | Outdoor pantry with drop down picnic table. Complete with LED light, GPO, USB, entertainment pack & airbag controls (where possible & available with portable induction only) |
| Spare wheel with holder | 1 x matching spare wheel with holder |
Body
| Alloy plate / side protection |
|
| Construction – Roof | White 35mm wrap-around one-piece composite front and roof and back wall |
| Cladding colour – side | Various |
| Entry door | Black 1750×622 entry door with three locks, separate midge-screen security door and interior roller blind |
| Floor | PP honeycomb floor |
| Frame | CNC jigsaw frame (aluminium optional) |
| Outer trim | J-mould / truline mould with rubber insert |
| Insulation | XPS insulation |
| Roof hatch | 1 x large 700×500 roof hatch / skylight |
| Windows | Large double-glazed windows with midge-proof screens and blinds |
Storage
| Front external tunnel box storage |
|
| Front internal tunnel boot interior | Fully lined gal sheet |
| Front internal tunnel boot storage | 670L tunnel boot storage (700W x 430H x 2245D) accessible via external doors (Weber BBQ compatible) and gas-lift bed (on some models) |
STANDARD INTERIOR
Appliances
| Air Conditioner | Dometic FreshJet Z – 7 series lite 3kW inverter roof-top air conditioner |
| Cooker |
|
| Fans | 2 x black or white Sirocco II fans |
| Fridge | 216L compressor fridge (DC) |
| Hot water service | Swift 28L dual gas and electric hot water service |
| Rangehood | Swift flush mount recessed rangehood with dual fan |
| Washing machine | 3kg – 3.5kg washing machine |
Bathroom
| Accessories pack | Towel hooks, hand towel rails, bath towel rails – brushed chrome |
| Shower and toilet hatch and exhaust fan | 2 x Ranger 12V shower hatches with LED lights, exhaust fans and removable fly screens |
| Shower screen frame | Silver, black or white |
| Sink | Black or white round ceramic ensuite bowl |
| Tapware | Chrome bathroom mixer tap |
| Toilet |
|
Bedroom
| Mattress | Pillowtop caravan mattress minimum 1530x1880mm (size is layout dependent) |
| Privacy |
|
Cabinetry
| Benchtop | Premium Urban Republic laminate benchtop with optional large magazine pocket |
| Cupboard door handles | Rectangle flush push lock |
| Cupboard drawers | Metal-sided |
| Furniture | CNC precision-cut solid double laminate |
| Pantry | Layout specific – refer to selected layout description |
| Splashback | Perspex |
| Upholstery | Microfiber leather pillow-back style upholstery |
Kitchen
| Sink |
|
| Tapware | Brushed stainless 3-in-one tall gooseneck kitchen tap with filtered drinking water spout |
STANDARD ELECTRICAL
| Anderson plug | Grey anderson plug and 1 x grey 12V portable solar input |
| Electrical system | Redarc Alpha 50 off-grid system with an under-the-lounge installation, providing 50A via solar/DC/AC, 2000W inverter, 600W solar, and 300Ah lithium battery for smooth, efficient power management. |
| External entertainment pack | External entertainment pack – includes USB charger, coaxial antenna, 12V socket and TV bracket |
| External GPO | Dual 240V GPOs above tunnel boot and outdoor pantry |
| Lighting – external: 6 external lights | 17″ light bars front and rear, 3 x insect repellent 2 stage LED lights doorside inc. BBQ and 1 roadside |
| Lighting – internal | Kitchen sink light, Bathroom sink light, Shower light, Roof LED 3″ downlights |
| Media | Fusion audio and speakers (RA60) includes AM-FM radio, AUX, USB and Bluetooth, 2 x Fusion internal speakers, 2 x Fusion external speakers |
| Mood lighting and step light | Amber |
| Starlink Provision | Starlink internet provision |
| Tow plug | 12 pin |
| TV | 24″ Smart TV |
| TV antenna | Omni Winegard / Cowfish TV antenna |
| Charging outlets | At seats, robes, bunks and external entertainment pack |
STANDARD WATER
| External shower | 1 x external shower |
| Grey water bypass | Grey water bypass |
| Tank – fresh water | 2 x 90L-100L freshwater tanks |
| Tank – grey water | 1 x 100L grey water tank (at rear) |
| Water filler and mains | Quick fill and mains connection and 1 separate filler and cap |
| Water tank gauge | 1 per tank |
STANDARD SAFETY & SECURITY
| Reversing camera | Car windscreen mirror and rearview mirror monitor |
| Safety inclusions | Breakaway, Smoke and carbon monoxide detector, LPG detector, Fire blanket and fire extinguisher |
Take your caravan to the next level! Download the brochure to explore all the upgrade options.

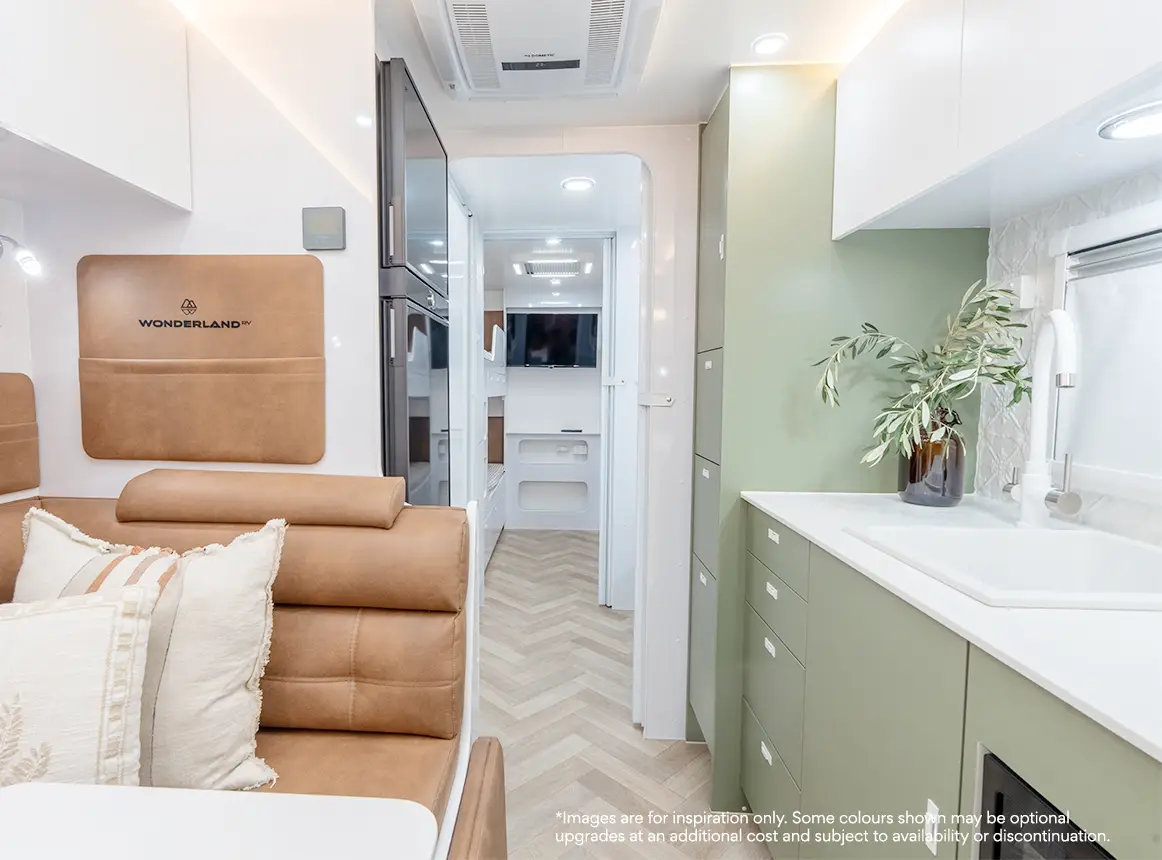

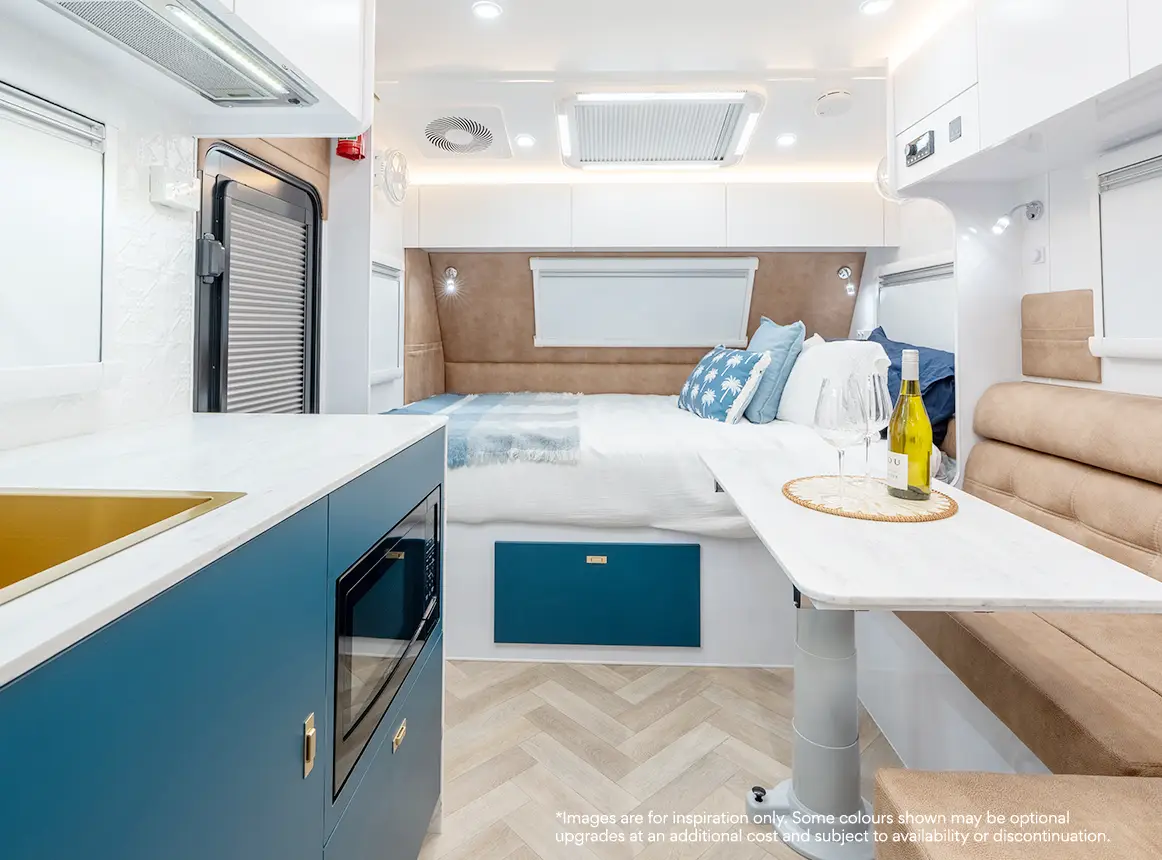

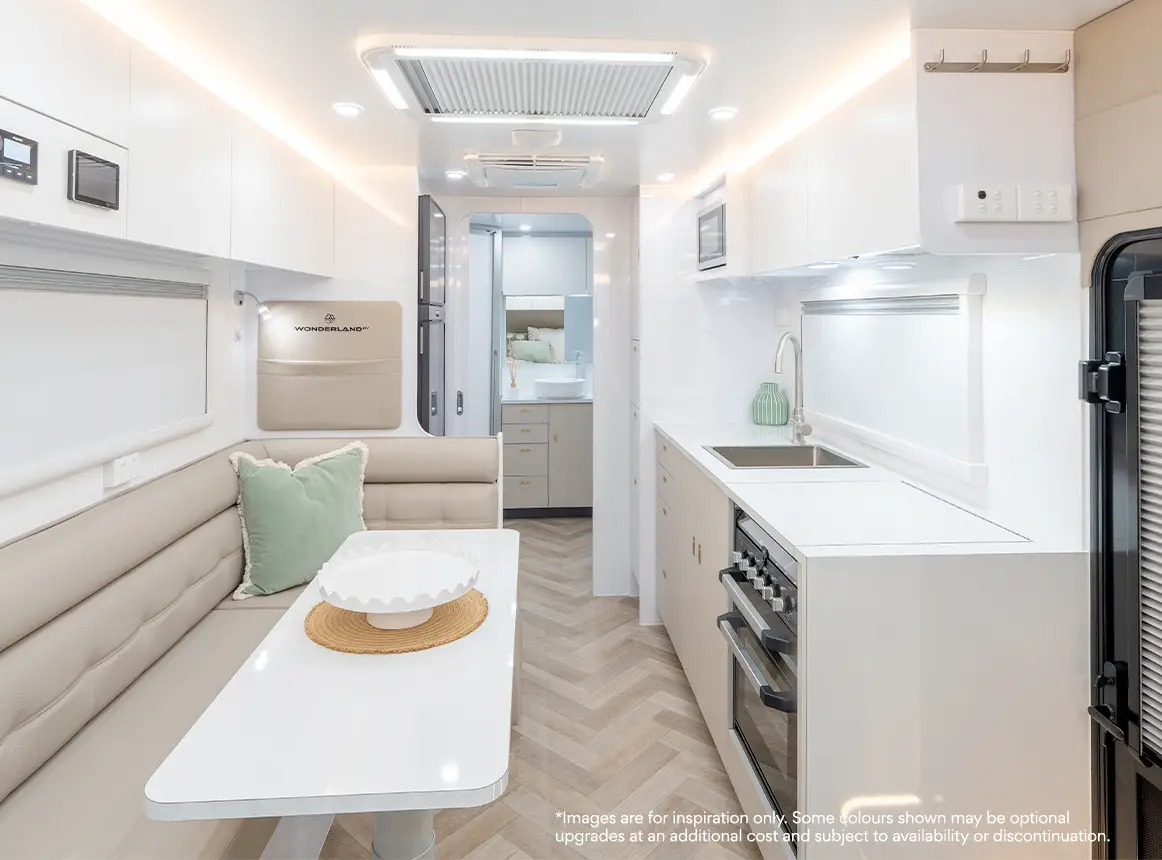

Explore the world of colour and textures:
