Built, finished and located in Victoria, ready for handover.
1 / 13
Drive away price, correct at the time of publishing. Prices, specifications and availability can change without notice. E&OE applies.

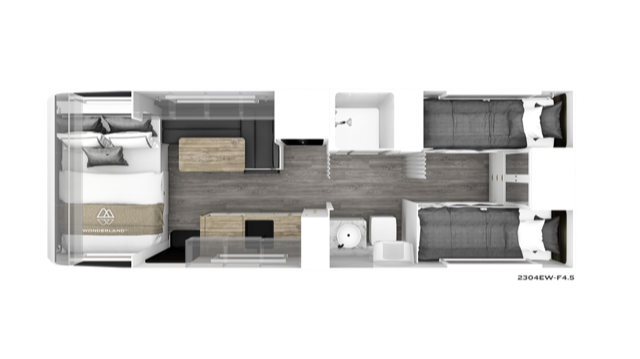

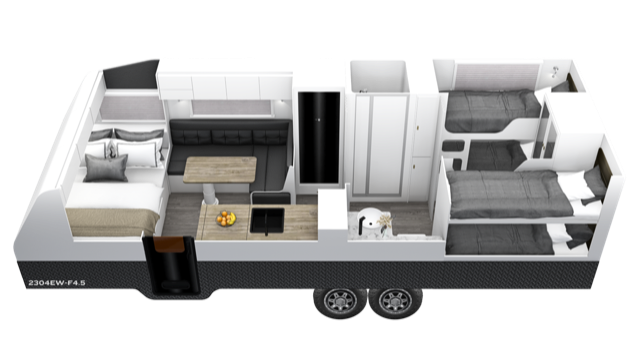

The 2304EWF4.5 layout.
Specification for this van, based on the Hornet range build. Confirm fitted upgrades with our team.
STANDARD CONSTRUCTION
| Composite one-piece wrap-around front, roof and back wall, with SPR aluminium side frames | |
| PP honeycomb floor | |
| XPS insulation | |
| 850mm checkerplate in black or 850mm alloy in flat black plate | |
| Black 1750 × 622 entry door with three locks, separate midge-screen security door and concertina blind |
STANDARD CHASSIS & SUSPENSION
| 6″ x 1950mm A-Frame and double 4+4″ chassis and wheelbox Riser (flat floor) | |
| Cruisemaster XT Level 3 Manual Airbag Suspension Kit, 4.5T Load Capacity | |
| 12″ drum brakes | |
| Chassis finish: Hot-dip galvanised or Toughcoat-MP | |
| DO35 by Cruisemaster recessed | |
| AL-KO 8″ wide large clamp 629915 | |
| Drop down corner stabilisers | |
| Double aluminium step | |
| 4 arm with taillights | |
| 2 x chassis skid plates and recovery point | |
| 2 x rear bar water tank / jerry can holders |
STANDARD ELECTRICAL
| Redarc Alpha 75 off-grid system with an under-the-lounge installation, delivering 75A solar/AC, 50A DC, 2600W inverter, 800W solar, and 400Ah lithium. | |
| Grey anderson plug and 1 x Grey 12V / yellow 24V portable solar input | |
| Dual 240V GPOs above tunnel boot and outdoor pantry | |
| 6 External Lights: 17” light bars front and rear, 3 x insect repellent 2 stage LED lights on doorside including the BBQ and 1 on roadside | |
| Kitchen sink light, Bathroom sink light, Shower light, Roof LED 3″ downlights | |
| Media: Fusion audio and speakers (RA670) includes AM-FM radio, AUX, USB, Bluetooth and smart phone connectivity, 2 x Fusion internal speakers, Fusion soundpanel external speaker | |
| Mood lighting and step light: Amber | |
| Starlink internet provision | |
| Tow plug: 12 pin | |
| 24″ Smart TV | |
| Omni Winegard / Cowfish TV antenna | |
| External entertainment pack includes USB charger, coaxial antenna, 12V socket, TV bracket, double power point and audio return |
STANDARD PLUMBING
| 2 x 90L to 100L fresh water tanks | |
| 1 x 90L drinking water tank (above axles) | |
| 1 x 100L grey water tank (at rear) | |
| Grey water bypass | |
| Quick fill and mains connection and 1 separate filler and cap | |
| Water tank gauge: 1 per tank | |
| 1 x external shower | |
| 2 x 4kg or 9kg powdercoated gas cylinders | |
| 2 x 4kg powdercoated gas cylinders | |
| 1 x gas bayonet plus 1 x cold tap at tunnel boot | |
| Swift 28L dual gas and electric hot water service |
STANDARD APPLIANCES
| Dometic FreshJet Z, 7 series lite 3kW inverter roof-top air conditioner | |
| Multi-function cooker, fryer, grill & microwave in base cupboards & portable induction cooktop, or Mini grill & 4 gas burner stove with 2 drawers & no microwave | |
| 216L compressor fridge (DC) | |
| Swift flush mount recessed rangehood with dual fan | |
| 3kg to 3.5kg washing machine | |
| 2 x black or white Sirocco II fans | |
| Awning: Dometic manual 8700 grey with black arms | |
| Outdoor pantry with drop down picnic table. Complete with LED light, GPO, USB, entertainment pack & airbag controls (where possible & available with portable induction only) | |
| CS pressure, 12V powered dust reduction | |
| 1 x matching spare wheel with holder | |
| Towel hooks, hand towel rails, bath towel rails, brushed chrome | |
| 2 x Ranger 12V shower hatches with LED lights, exhaust fans and removable fly screens | |
| Shower screen frame: Silver, black or white | |
| Sink: Black or white round ceramic ensuite bowl | |
| Tapware: Chrome bathroom mixer tap |
FITTED TO THIS VAN
| Fitted upgrades for this van to be confirmed with our team. |
