Stock vans /Pages /WL1267
Ready now Stock no. WL1267

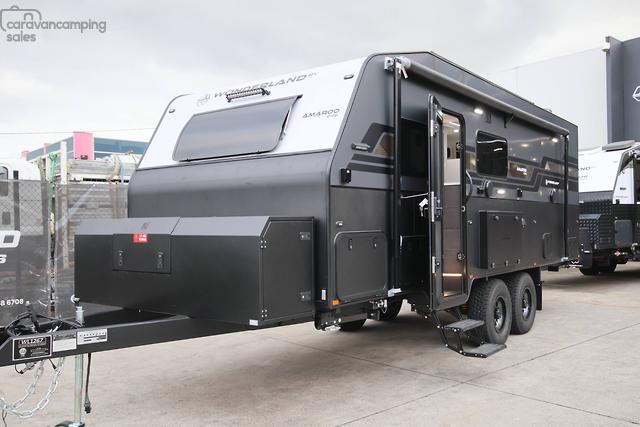

Amaroo 2106 Rear Twin Bunk Family

Built, finished and located in Queensland, ready for handover.

Amaroo 2106 Rear Twin Bunk Family 1 / 25
Drive away
$149,250
Call now

Drive away price, correct at the time of publishing. Prices, specifications and availability can change without notice. E&OE applies.

Model
Amaroo
Wonderland RV range
Travel length
9.0 m
Overall towing length
Layout
Family
2 bunks on board
Location
Aussie Escape Caravans - QLD
Where it is now
Tows behind most 3.5T-rated dual cab utes. Payload of 586 kg once you are loaded.

Floorplan

The 2106EW-F2.4 layout.

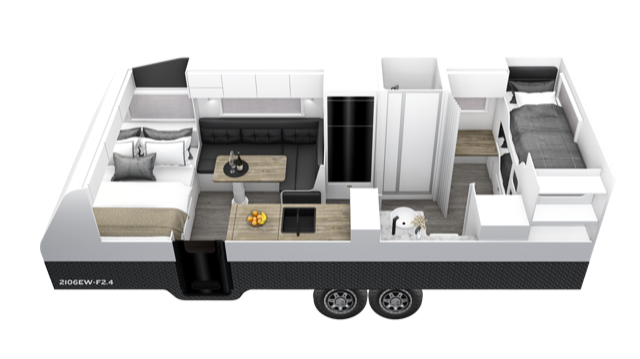

2106EW-F2.4 3D view
3D view

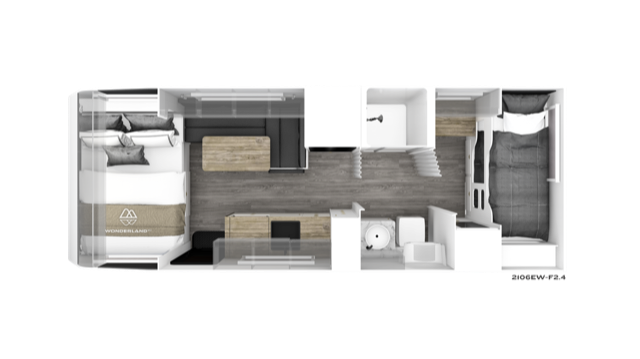

2106EW-F2.4 Top down
Top down

Specifications

Specification for this van, based on the Amaroo range build. Confirm fitted upgrades with our team.

Redarc Alpha 50 off-grid powerCruisemaster XT airbag suspension2 x 90-100L water tanks
Stock no WL1267
Layout code 2106EW-F2.4
Internal length 21'06"
Layout Family
Sleeps 4
Tare 2,914 kg
ATM 3,500 kg
Ball weight (empty) 242 kg
Payload 586 kg
Axle Tandem axle
Condition New
Location Aussie Escape Caravans - QLD

STANDARD CONSTRUCTION

Composite one-piece wrap-around front, roof and back wall, with SPR aluminium side frames
PP honeycomb floor
XPS insulation
850mm checkerplate in black or 850mm alloy in flat black plate
J-mould / truline mould with rubber insert
Black 1750×622 entry door with three locks, separate midge-screen security door and interior roller blind

STANDARD CHASSIS & SUSPENSION

6″ x 1950mm A-Frame & double 4+4″ chassis & wheelbox riser (flat floor)
Tandem axle
3.7T Cruisemaster XT Coil or 3.7T Tuff-Ride Coil, Airbag Ready
12″ drum brakes
Chassis finish: Painted black
DO35 by Cruisemaster recessed
AL-KO 8″ wide large clamp 629915
Drop down corner stabilisers
Double aluminium step
4 arm with taillights

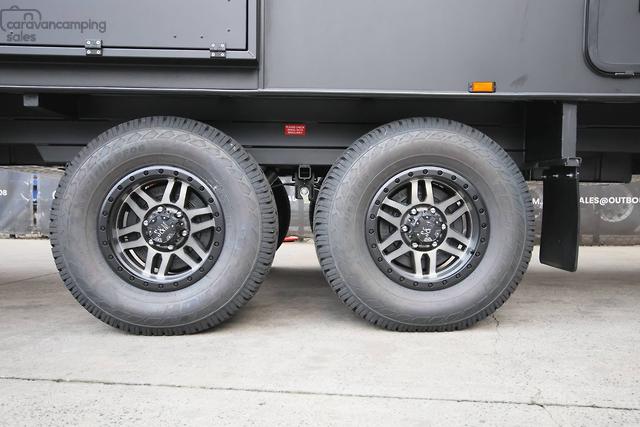

Grid 16″ 6×139 ET0 & 265/75R16 All Terrain
2 x rear bar water tank/jerry can holders

STANDARD ELECTRICAL

Redarc Alpha 50 off-grid system with an under-the-lounge installation, providing 50A via solar/DC/AC, 2000W inverter, 600W solar, and 300Ah lithium battery for smooth, efficient power management.
Grey anderson plug and 1 x grey 12V portable solar input
Dual 240V GPOs above tunnel boot and outdoor pantry
17″ light bars front and rear, 3 x insect repellent 2 stage LED lights doorside inc. BBQ and 1 roadside
Kitchen sink light, Bathroom sink light, Shower light, Roof LED 3″ downlights
Media: Fusion audio and speakers (RA60) includes AM-FM radio, AUX, USB and Bluetooth, 2 x Fusion internal speakers, 2 x Fusion external speakers
Mood lighting and step light: Amber
Starlink internet provision
Tow plug: 12 pin
24″ Smart TV
Omni Winegard / Cowfish TV antenna
External entertainment pack, includes USB charger, coaxial antenna, 12V socket and TV bracket

STANDARD PLUMBING

2 x 90L to 100L freshwater tanks
1 x 100L grey water tank (at rear)
Grey water bypass
Quick fill and mains connection and 1 separate filler and cap
Water tank gauge: 1 per tank
1 x external shower
2 x 4kg powdercoated gas cylinders
1 x gas bayonet plus 1 x cold tap at tunnel boot
Swift 28L dual gas and electric hot water service

STANDARD APPLIANCES

Dometic FreshJet Z, 7 series lite 3kW inverter roof-top air conditioner
Multi-function cooker, fryer, grill & microwave in base cupboards & portable induction cooktop, or Mini grill and 4 gas burner stove with 2 drawers and no microwave
216L compressor fridge (DC)
Swift flush mount recessed rangehood with dual fan
3kg to 3.5kg washing machine
2 x black or white Sirocco II fans
Awning: Dometic manual 8700 grey with black arms
Outdoor pantry with drop down picnic table. Complete with LED light, GPO, USB, entertainment pack & airbag controls (where possible & available with portable induction only)
1 x matching spare wheel with holder
Towel hooks, hand towel rails, bath towel rails, brushed chrome
2 x Ranger 12V shower hatches with LED lights, exhaust fans and removable fly screens
Shower screen frame: Silver, black or white
Sink: Black or white round ceramic ensuite bowl
Tapware: Chrome bathroom mixer tap

FITTED TO THIS VAN

Fitted upgrades for this van to be confirmed with our team.
Standard construction
Composite one-piece wrap-around front, roof and back wall, with SPR aluminium side frames
PP honeycomb floor
XPS insulation
850mm checkerplate in black or 850mm alloy in flat black plate
J-mould / truline mould with rubber insert
Black 1750×622 entry door with three locks, separate midge-screen security door and interior roller blind
Standard chassis & suspension
6″ x 1950mm A-Frame & double 4+4″ chassis & wheelbox riser (flat floor)
Tandem axle
3.7T Cruisemaster XT Coil or 3.7T Tuff-Ride Coil, Airbag Ready
12″ drum brakes
Chassis finish: Painted black
DO35 by Cruisemaster recessed
AL-KO 8″ wide large clamp 629915
Drop down corner stabilisers
Double aluminium step
4 arm with taillights
Grid 16″ 6×139 ET0 & 265/75R16 All Terrain
2 x rear bar water tank/jerry can holders
Standard electrical
Redarc Alpha 50 off-grid system with an under-the-lounge installation, providing 50A via solar/DC/AC, 2000W inverter, 600W solar, and 300Ah lithium battery for smooth, efficient power management.
Grey anderson plug and 1 x grey 12V portable solar input
Dual 240V GPOs above tunnel boot and outdoor pantry
17″ light bars front and rear, 3 x insect repellent 2 stage LED lights doorside inc. BBQ and 1 roadside
Kitchen sink light, Bathroom sink light, Shower light, Roof LED 3″ downlights
Media: Fusion audio and speakers (RA60) includes AM-FM radio, AUX, USB and Bluetooth, 2 x Fusion internal speakers, 2 x Fusion external speakers
Mood lighting and step light: Amber
Starlink internet provision
Tow plug: 12 pin
24″ Smart TV
Omni Winegard / Cowfish TV antenna
External entertainment pack, includes USB charger, coaxial antenna, 12V socket and TV bracket
Standard plumbing
2 x 90L to 100L freshwater tanks
1 x 100L grey water tank (at rear)
Grey water bypass
Quick fill and mains connection and 1 separate filler and cap
Water tank gauge: 1 per tank
1 x external shower
2 x 4kg powdercoated gas cylinders
1 x gas bayonet plus 1 x cold tap at tunnel boot
Swift 28L dual gas and electric hot water service
Standard appliances
Dometic FreshJet Z, 7 series lite 3kW inverter roof-top air conditioner
Multi-function cooker, fryer, grill & microwave in base cupboards & portable induction cooktop, or Mini grill and 4 gas burner stove with 2 drawers and no microwave
216L compressor fridge (DC)
Swift flush mount recessed rangehood with dual fan
3kg to 3.5kg washing machine
2 x black or white Sirocco II fans
Awning: Dometic manual 8700 grey with black arms
Outdoor pantry with drop down picnic table. Complete with LED light, GPO, USB, entertainment pack & airbag controls (where possible & available with portable induction only)
1 x matching spare wheel with holder
Towel hooks, hand towel rails, bath towel rails, brushed chrome
2 x Ranger 12V shower hatches with LED lights, exhaust fans and removable fly screens
Shower screen frame: Silver, black or white
Sink: Black or white round ceramic ensuite bowl
Tapware: Chrome bathroom mixer tap
Fitted to this van
Fitted upgrades for this van to be confirmed with our team.
Where it is
Aussie Escape Caravans - QLD
This van is with our Queensland dealer. Enquire and we will set up a walkthrough in person or on a call.
